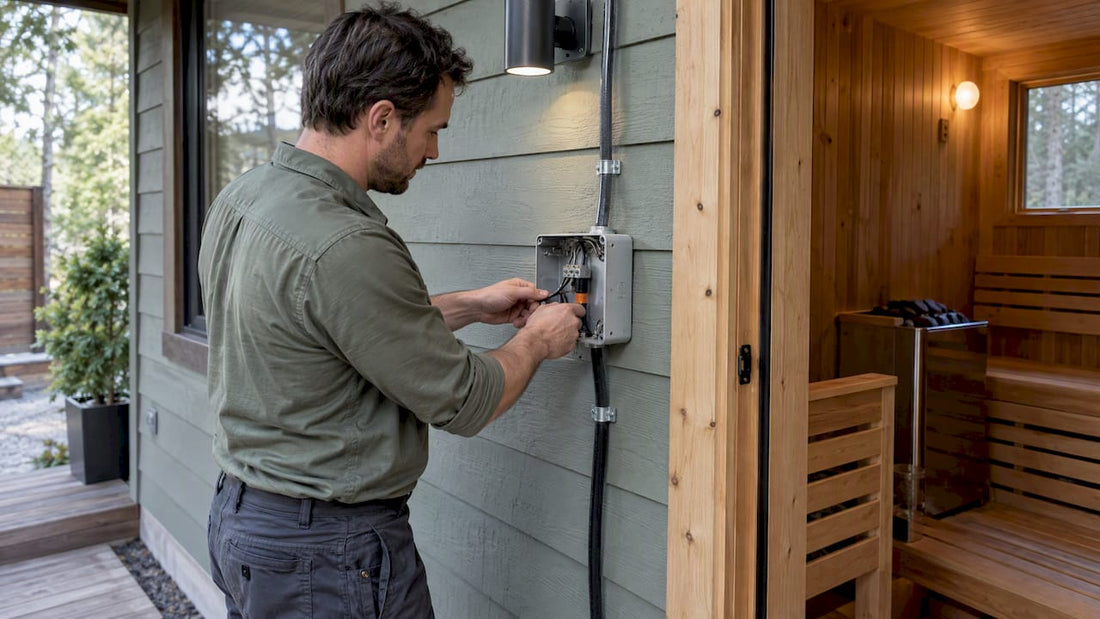

Electrician checking cable beside residential sauna

Sauna Electrical Requirements: Voltage, Amps and Wiring

The electrical requirements for a sauna depend on the type. Traditional electric sauna heaters generally need a dedicated 240V circuit with a double-pole breaker, while many compact infrared saunas run on 120V and still do best on their own dedicated circuit. The exact breaker, wire and receptacle always come from the nameplate and manual of the sauna you buy, confirmed by a licensed electrician and your local building department.

This guide walks through the numbers, explains why they look the way they do, and helps you decide what to check before you order, so power is never a surprise on delivery day.

Tranquilora
tranquilora.com
Choose a Sauna That Fits Your Power
Compare Tranquilora’s sauna options and buying guides to find a home wellness solution that suits your space and electrical setup.
Compare saunas and cold plunges

TL;DR

  • Traditional electric heaters (roughly 4.5 kW to 9 kW) typically need a dedicated, hardwired 240V circuit. Infrared cabins range from plug-in 120V units to 240V models.
  • Circuits for sauna heaters are sized at 125% of the heater’s rated current, because a sauna heater is a continuous load.
  • Standard NM-B (Romex) is not rated for the heat inside a sauna room. Heat-rated wiring, or a junction box outside the room, is the usual approach.
  • GFCI rules are debated. Follow the manufacturer’s manual, and let your local inspector’s requirement win if it differs.
  • A licensed electrician and the nameplate settle the final answer. Use this guide to plan, not to wire.

Table of Contents

Why a sauna is an electrical project, not just an appliance

A sauna heater draws power for a long stretch at a time, in a hot, sometimes humid room. That combination is why electricians treat sauna wiring with extra care. Sauna heaters are fixed electric space heating equipment under NEC Article 424, and the heater counts as a continuous load, which means the circuit has to be sized at 125% of the rated current.

In practical terms, that buffer keeps wires and breakers from running at their limit for an hour or more. It is the reason a heater that draws 25 amps ends up on a 30-amp breaker, not a 25-amp one.

Plug-in infrared units are a different story, and often a simpler one. The sections below take each type in turn.

Traditional electric saunas: 240V, hardwired

If you are comparing a classic Finnish-style room with an infrared cabin, our home sauna types comparison covers the experience side. On the electrical side, the difference is large.

Most traditional electric sauna heaters, from 4.5 kW to 9 kW, need a dedicated 240V circuit. That generally means:

  • A double-pole breaker in your main or sub-panel.
  • Copper conductors sized to the heater’s nameplate.
  • A hardwired connection, not a standard wall outlet.

Some smaller heaters are sold with a cord and a 240V plug, which still needs a matching 240V receptacle on its own circuit. Neither is something an ordinary 120V outlet can supply.

Typical breaker and wire sizes by heater

The figures below are common examples published for 240V sauna heaters. Treat them as a planning guide, since the manufacturer’s nameplate requirements take priority.

Heater size Voltage Typical breaker Typical copper wire
4.5 kW 240V 30A 10 AWG
6 kW 240V 40A 8 AWG
8 kW 240V 40A 8 AWG
9 kW 240V 50A 6 AWG

The math behind the first row is simple. A 4.5 kW heater at 240V draws about 18.75 amps. Multiply by 1.25 and you get roughly 23.4 amps, so the next standard breaker size up is 30A. Longer wire runs from the panel to the sauna can call for a larger conductor to limit voltage drop, which is one more reason to have an electrician measure the actual route.

Manufacturer manuals list this information by model. For example, the Harvia HL110 Virta owner’s manual includes a power requirements table with voltage, phase, amperage, recommended wire size and breaker size for each heater size. Your own heater’s manual is the document to hand your electrician.

Typical breaker and wire sizes by heater — overview diagram

Check your panel capacity first

A 40A or 50A double-pole breaker is a significant addition to a household panel. Before you commit to a heater size, ask the electrician to review:

  1. How much spare capacity your main panel has.
  2. Whether a sub-panel is needed, especially for a detached garage or backyard building.
  3. How far the sauna is from the panel, and whether the path crosses a crawl space, wall or trench.

A smaller heater can be the better choice if it avoids a panel upgrade, as long as it is rated for the cubic footage of your room.

Infrared saunas: 120V or 240V

Infrared saunas warm you directly with infrared panels instead of heating the air with a stone-filled heater, so their wattage is often lower. That is why many one- and two-person cabins are built for 120V. Larger cabins, and some multi-person or outdoor models, are built for 240V.

There is no single number for every infrared sauna, so read the spec sheet. Here is how the common cases look.

Setup Typical circuit What to confirm
Compact 120V cabin or tent Standard grounded receptacle on a 15A or 20A circuit Nameplate amps, receptacle type, whether anything else shares the circuit
Larger 120V cabin Dedicated 20A circuit with a 20A receptacle Plug shape, since a 20A plug may not fit a 15A outlet
240V cabin Dedicated 240V circuit, sometimes hardwired Breaker size, wire gauge, disconnect and cord or hardwire option

What a dedicated circuit means for infrared

A dedicated circuit is one breaker feeding one load. Nothing else, no lamps, no space heater, no phone charger across the room, shares it. The reason is arithmetic. A 120V circuit on a 15A breaker has a continuous-load ceiling of about 12 amps (80% of 15A), and a 20A circuit about 16 amps. A sauna that draws 12 or more amps will leave little headroom for anything else, and shared circuits are where nuisance trips begin.

Continuous-load ceilings for two circuit sizes

If you are choosing between sizes, our infrared sauna buying guide explains how cabin size, panel type and heat feel relate to each other, and the Infrared Saunas collection lists each model with its specifications on the product page.

Can you plug a sauna into a regular outlet?

Some infrared saunas can, but only if three things line up: the unit is designed for a standard household receptacle, the outlet is properly grounded, and the circuit is not shared with other heavy loads. Many compact units fit that description. A traditional 240V heater never does.

If the plug on your sauna has a different shape than your wall outlet, such as a larger 20A blade or a locking plug, that is a sign it needs a different receptacle and likely its own circuit. Do not swap the plug or use an adapter. Ask an electrician to install the right receptacle.

Apartments, rentals and portable options

Renters often cannot add circuits, so power is the deciding factor in what they can use. Our piece on a portable sauna for apartment living covers the practical side, and the Portable Saunas collection shows options built for standard outlets. Even then, avoid running a portable sauna on a power strip or extension cord unless the manual explicitly allows it.

Wiring inside and around the sauna room

The room itself matters as much as the panel. Heat, steam and bare skin all change the risk picture.

Use heat-rated wire in the hot zone

Standard household wiring such as NM-B (Romex) is not rated for the temperatures inside a sauna room. Electricians use high-temperature cable or heat-rated conductors in conduit inside the room, or they end the standard wiring at a junction box outside the room and transition there. Using the wrong insulation inside the walls can degrade it over time and create a fire hazard.

Keep connections dry and outside

In the UK, wiring regulations classify sauna rooms as special locations because of heat, humidity and reduced skin resistance. US rules differ in detail, but the practical conclusion travels well: many professionals keep junction boxes and power equipment outside the sauna room, so only heat-resistant wiring enters the hot zone.

Disconnects and outdoor runs

A disconnect within sight of the equipment is a common requirement. One Portland electrical contractor describes a weatherproof NEMA 3R disconnect under NEC 422.31, plus burial depths under NEC 300.5 for backyard saunas, including 24 inches for direct-burial UF-B cable and 18 inches for THWN-2 in conduit. Local amendments vary, so treat those numbers as an example of what an outdoor run involves, not as a universal rule.

If you are considering a backyard cabin, read Is an Outdoor Infrared Sauna Right for Your Home? before you plan the trench. A sauna that lives 50 feet from the house has a very different electrical bill than one in a spare room.

The GFCI question

GFCI protection is one of the most argued topics in sauna wiring, and for good reason: the answer depends on the equipment and the jurisdiction.

Here is what the research shows. Many manufacturers advise against GFCI breakers on high-amperage 240V sauna heaters, because heat and minor moisture leakage can cause nuisance tripping that gets read as a fault. But if your local inspector or building code requires GFCI, that requirement overrides the manufacturer’s recommendation.

The practical path:

  1. Read the GFCI section of the heater or sauna manual.
  2. Ask your electrician what your local code adopts.
  3. Raise it with the Authority Having Jurisdiction (the local building or electrical inspector) before wiring starts, not after.

Plug-in 120V infrared units are another case. Many plug into receptacles that may already have GFCI protection, such as in a garage or bathroom. Check the manual for guidance on that, and do not remove protection from a circuit to stop it tripping. A sauna that trips repeatedly needs diagnosis from an electrician.

Read the manual before the code summary

General guides like this one explain the landscape. Your installation, though, is governed by the equipment instructions and the local code. The most common pitfall, according to electrical contractors, is following general NEC rules while ignoring the heater manual, when the manufacturer’s wiring and GFCI specifications may be stricter, and when they also back your warranty.

The NEC also changes by edition, and states and cities adopt different versions with their own amendments. That is why “what does the code say” has no single answer for every address.

A pre-purchase electrical checklist

Bring these questions to your electrician before you order, ideally with the product page or manual open:

  1. What voltage and amperage does the nameplate list? This decides the breaker and wire.
  2. Is the connection plug-in or hardwired? Which receptacle or disconnect is needed?
  3. Is there room in the panel? Or does the job need a sub-panel or service upgrade?
  4. How long is the wire run? Distance can push the conductor size up.
  5. Is the room indoors, in a basement, in a garage or outdoors? Each changes conduit, burial, weatherproofing and GFCI questions.
  6. Does the permit require inspection? Many jurisdictions require a permit for a new circuit.
  7. Will the sauna’s surroundings stay ventilated and dry? Our cedar vs hemlock guide puts ventilation first for good reason.

The cost of electrical work varies widely by location, panel condition and distance, so get a written quote for your own address instead of relying on a national average.

Choosing a sauna with your power situation in mind

The smartest way to avoid electrical surprises is to let your available power shape the shortlist. A few patterns tend to work:

If you are still weighing the bigger picture, the complete home sauna buying guide walks through size, heat type and budget in one place.

Find a sauna that fits your outlet and your routine

Tranquilora’s curated range includes infrared saunas, outdoor saunas, portable options and recovery products, each with the guides to help you compare. Browse the Infrared Saunas collection to see specifications side by side, or start with Saunas & Cold Plunges if you are planning a broader recovery space. Check the electrical specifications on each product page and share them with your electrician before you order.

Eldvik 2-Person Outdoor Infrared Sauna

Power is only the first step in ownership. Two follow-up topics are worth planning now:

As with any heat exposure, if you have a heart condition, are pregnant, take medications that affect heat tolerance or have another health concern, ask your doctor whether sauna use is appropriate for you. Evidence on sauna benefits is still developing, and an electrical safe setup is separate from whether heat sessions suit you.

FAQ

Does a sauna need a dedicated circuit?

Traditional electric heaters do, on a dedicated 240V circuit. Most infrared saunas should also have their own circuit, since a sauna can use most of a 15A or 20A circuit’s capacity. Check the manual for the specific requirement.

Does a sauna require a 220 or 240V outlet?

Traditional electric sauna heaters generally do, and are often hardwired rather than plugged in. Many small infrared cabins use a standard 120V outlet, while larger infrared models may need 240V. The nameplate tells you which.

Can you use Romex in a sauna?

Not inside the hot room. NM-B cable is not rated for sauna temperatures, so electricians use heat-rated wire there or move the transition to a junction box outside the room. Standard building wiring can still serve the panel side.

Does an infrared sauna need a GFCI breaker?

It depends on the manufacturer’s instructions and your local code. Some manufacturers advise against GFCI on high-amperage 240V heaters, but a local inspector’s requirement overrides that. Ask your electrician and local building department before installation.

Can I install the circuit myself?

Adding a 240V circuit or hardwiring a heater is work for a licensed electrician, and often needs a permit and inspection. A DIY mistake can void a warranty and create a fire or shock risk. Plug-in units only need the right receptacle, which an electrician can confirm.
